Palmetto LightReach Expanded Battery Support

With the release of Palmetto LightReach Expanded Battery Support (V3), batteries can now utilize the pricing set in MissionControl, rather than needing to be manually considered when determining pricing on the proposal.

Turning on Palmetto LightReach Expanded Battery Support

Before enabling Expanded Battery Support, Palmetto LightReach-approved batteries must be added via MissionControl. Use the Approved Battery List below to ensure the correct options are added.

  1. Open MissionControl > Finance Options.
  2. Click Map Options on the Palmetto LightReach dropdown.
    Screenshot 2025-06-11 at 3.18.08 PM

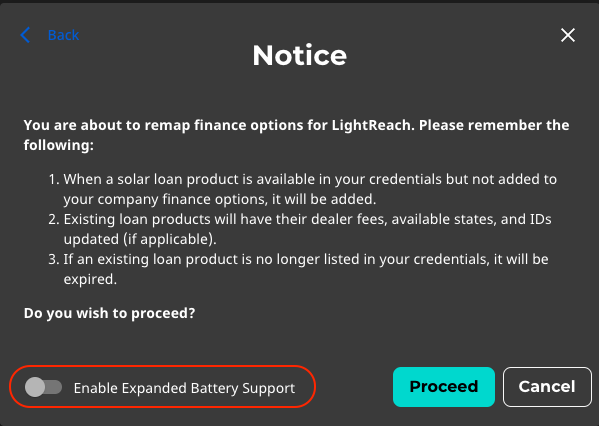

  3. Toggle "Enable Expanded Battery Support".
    LR_ExpandedBatterySupportToggle

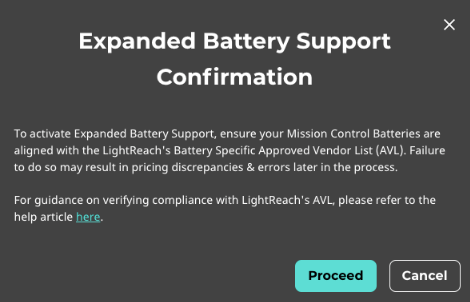

  4. When enabled, this warning message will appear, click "Proceed".
    LR_ExpandedBatterySupportWarning
  5. Click "Save Finance Changes" at the bottom!



Adding Batteries in MissionControl:

Owner Feature Only!

  • Inside of MissionControl, open the "Batteries" section.
  • In the Select Dropdown, find the approved battery option you want to add to your company. Use the table below to reference the Palmetto LightReach-approved options.
    Screenshot 2025-06-11 at 3.25.12 PM

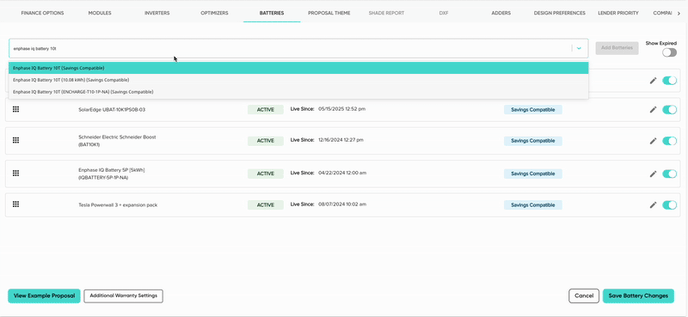

  • Press "Add" once you select all the battery options you want to include in your offerings.
    ScreenRecording2025-06-11at3.28.03PM-ezgif.com-video-to-gif-converter
  • Use the pencil button on the right of the equipment option to make edits to battery settings and pricing, if needed.
  • Press "Save Battery Changes" button at bottom right.

Palmetto LightReach Approved Battery Equipment

Manufacturer Battery Name
Enphase  IQ Battery 10T (ENCHARGE-T10-1P-NA)
Enphase IQ Battery 3T (ENCHARGE-3T-1P-NA)
Enphase IQ Battery 5P (IQBATTERY-5P-1P-NA)
Enphase IQ Battery 5P (IQBATTERY-5P-1P-NA-DOM)
Enphase Schneider Boost (BAT10K1)
Enphase BAT-10K1PS0B-02
Enphase UBAT-10K1PS0B-03
Tesla Powerwall  Powerwall+
Tesla Powerwall Powerwall 2 (1232100-xx-y)
Tesla Powerwall Powerwall 3 (1707000-xx-y)
Tesla Powerwall Powerwall 3 US (1707000-21-K)
Tesla Powerwall Powerwall 3 US (1707000-21-L)
Tesla Powerwall Powerwall 3 + 2 expansion packs (1807000-00-y)
Tesla Powerwall DOM Powerwall 3 (1707000-21-Y) + 1 expansion pack (1807000-00-Y)
Tesla Powerwall DOM Powerwall 3 (1707000-21-Y) + 2 expansion packs (1807000-00-Y)
Tesla Powerwall DOM Powerwall 3 (1707000-21-Y) + 3 expansion packs (1807000-00-Y)
