Gemini Proposal Walkthrough

The Gemini Proposal has several new updates to Proposals. Follow along to learn more!

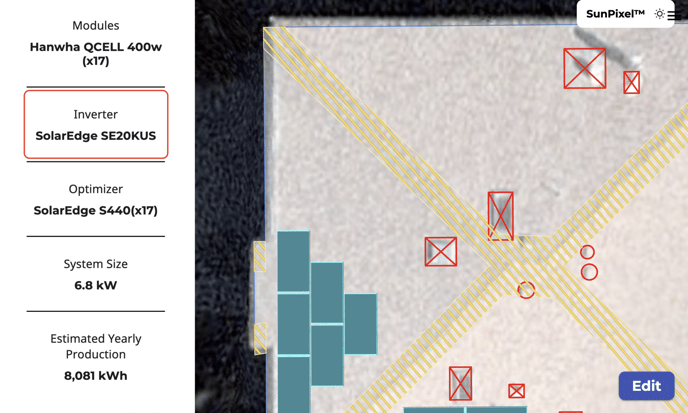

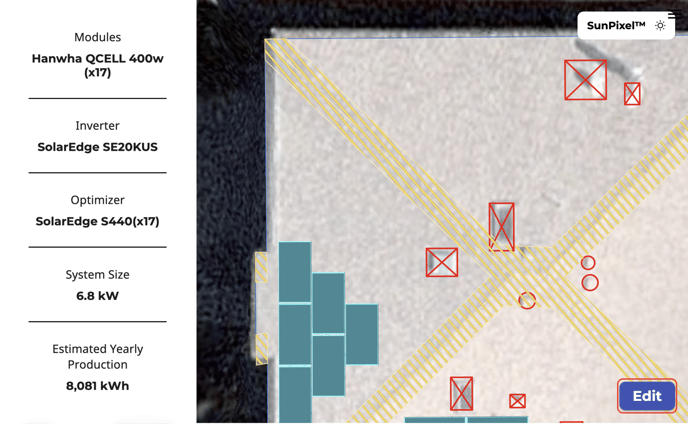

1. When on the Design Page, you can tap any of the Equipment options to open the equipment modal.

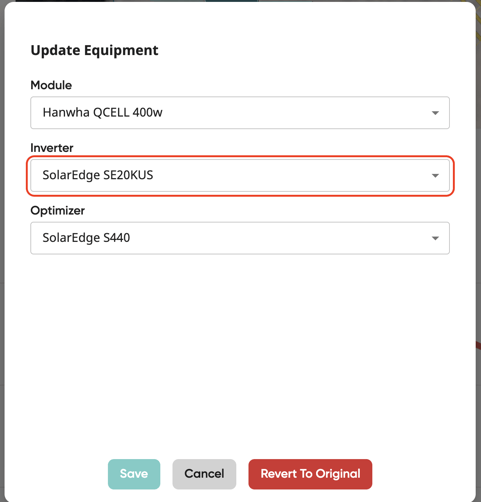

2. From the Equipment Modal, you can update the selected equipment in each drop-down.



3. Pressing the Edit button will allow you to enter DirectDesign View/Edit.

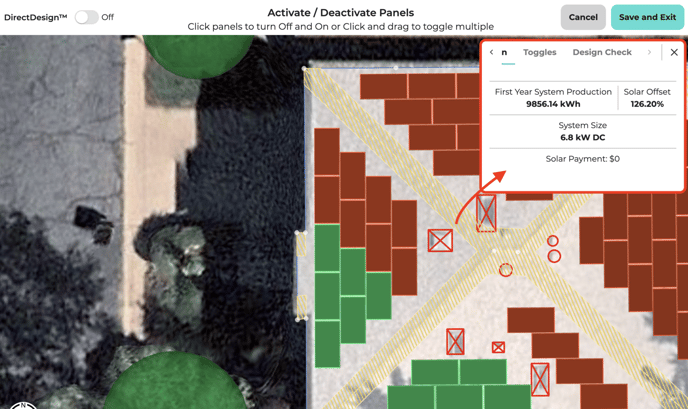

4. On the right side, you can review the production, toggles, and design check. Once DirectDesign is toggled on, you can also edit the panels on the design.



5. Switch the toggle to turn on DirectDesign.

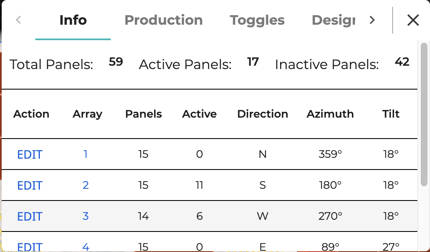

6. Once toggled on, the Info tab will no longer be greyed out and be able to be edited.

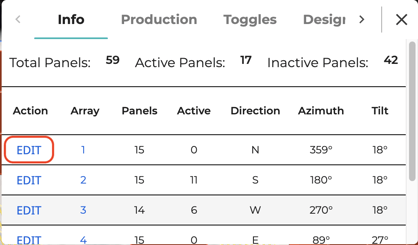

7. Select the Array that you want to edit.

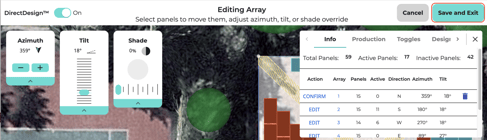

8. Once in edit mode, you will be able to adjust the azimuth, tilt, and shade. You can also move the panels on the design.

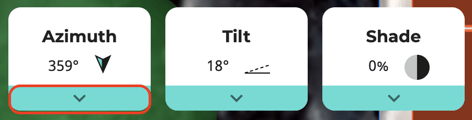

9. To edit the Azimuth, press the arrow to open up the editing field.

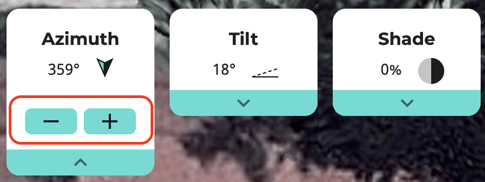

10. Use the - and + buttons to adjust the Azimuth degree.

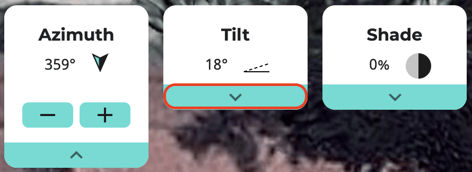

11. Use the arrow to expand the Tilt editor.

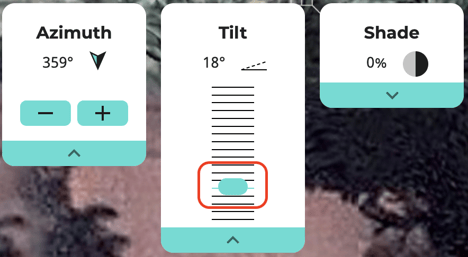

12. Drag the circle to the correct tilt position.

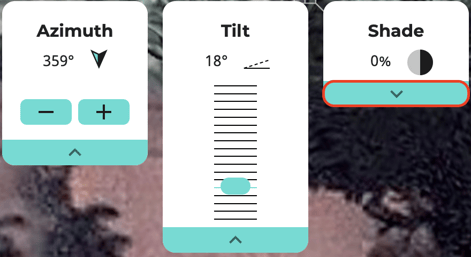

13. Use the arrow to expand the Shade editor.

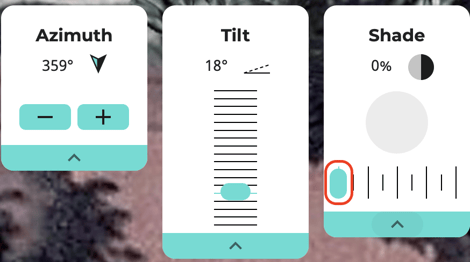

14. Drag the circle to the desired amount of shade percentage needed.



15. You can add panels by pressing the + button and placing the "green panel" on the roof.

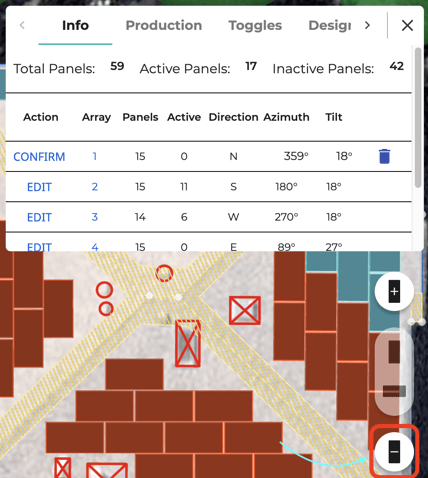

16. You can remove panels by pressing the - button and tapping on the existing panel you would like to remove.



17. Once you are done making changes, press Save and Exit.
